All connectors are shown from the wire side of the female connector (i.e. looking at the ECU).

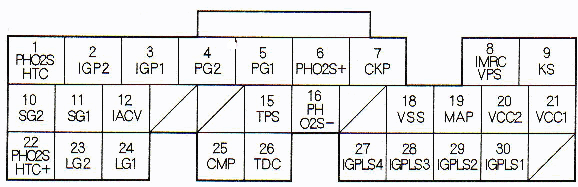

A Connector

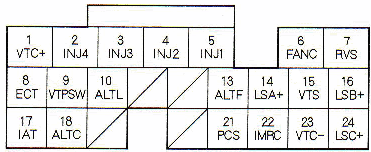

B Connector

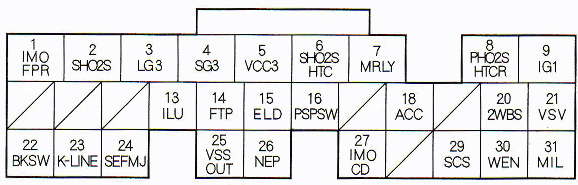

E Connector
K-Pro / S2000 Outputs
Function |
K-Pro Pin |
S2000 Pin |
Boost Control |
B21 |
A6 |
PSP |
E16 |
A26 |
SCS |
E29 |
A10 |
BKSW |
E22 |
A32 |
VTP |
B9 |
C10 |
VSV |
E21 |
A4 |
2WBS |
E20 |
A3 |
ACC |
E18 |
A17 |
FANC |
B6 |
A20 |
ELD |
E15 |
A30 |
