Ok so I made some progress.... sort of haha

I took a short data log while the car was running. Here is what I found:

If I pull the log off the ecu using the "Save As" function the analog sensors display incorrectly.

If I pull the log off the ecu using the "Download" function the analog sensors ...

I do have them set up as Numbers, that shouldn't affect how they log. I mean if it did affect how it logged i assume it would be wrong all the time, not working sometimes and failing other times. Here are 2 screen shots from the logs I posted before, no settings were changed between the two logs ...

bump. Anyone else had similar issues?

here are 2 logs they are labeled appropriately.

immediately after the one labeled "Analog sensors not working" was recorded I power cycled the ignition and took another short log (which I don't have) while idling and all of the sensors logged correctly.

Here it is.

The only thing i can think of is if the car is rolling forward after the burn out when the switch is hit. When i tested the switch it was sitting still idling VSS at 0. On the dyno using pc logging I hit f9 mid pull and all the sensors log and display fine. I don't think the VSS could have anything ...

S300 serial # 21048
software version 2.3.3.0

I am having trouble with the analog inputs on my s300 v2. Here is what is occurring- at idle or low load conditions or when on the dyno all 4 of the aux sensors work fine, I can drive around the pits they all read fine using onboard and pc logging. At the track is a different story, if you flip the ...

ECU sent in to Hondata and reprogrammed. Thanks Hondata for the quick turnaround!!!!! Now I have a question, Is there anything i can do to prevent this from reoccurring in the future?

email sent

yes the kpro is showing up as usb serial converter. I tried the "test usb" and this is the message i get
http://i225.photobucket.com/albums/dd95/mo_spec/E4D8FD63-E34C-419A-9CCC-8A03FC21F805-1298-0000010AC6F6EBE7.jpg

so i try and update ecu usb settings and i get this

http://i225.photobucket ...

serial # is 05008517

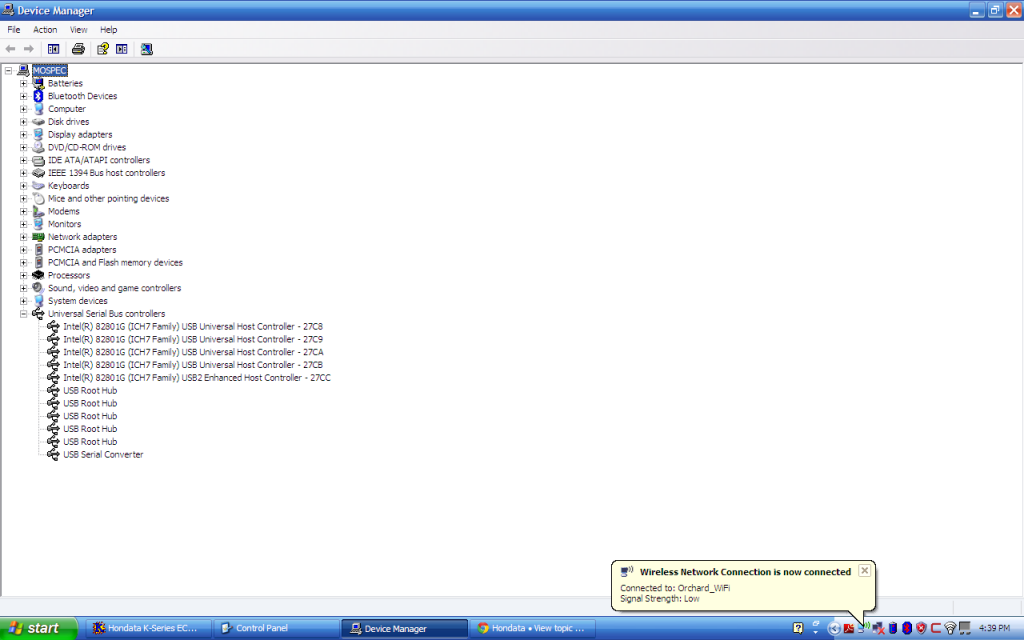

ok here is what device manager shows when kpro is plugged in, key on.

Spunkster wrote:What shows up in the Windows Device manager when you plug the USB cable into the laptop and K-Pro?

from what i remember, nothing shows up. I'll double check when I get home from work.

Let me get this straight

You installed YOUR kpro board into another ECU and it worked?
Then you installed another kpro board into your ECU and it didn't work?

That would point to your ECU sir, not the kpro board... Unless I misunderstood something.


Sorry about the mix up. Original post has ...
